Products > Power Cat > 3000 Sports |
 |
|
|

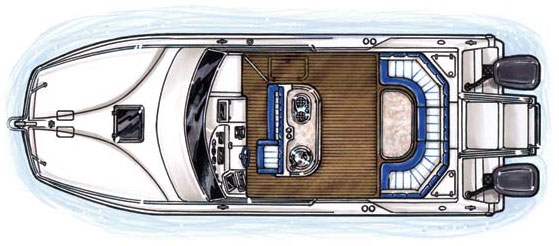

Floor Plan |
|
 |
|
 |
Cabriolet SPECIFICATIONS
Specifications may change at any time without notice. Please note that the illustrations displayed may show optional extras not normally supplied with the craft as a standard fitting. |
|
Shipping Length |
9.4m (31') |
Moulded Length Overall |
9.3m (30'6"") |
Overall Beam |
2.82m (9'3") |
Draft (Outboards Up) |
0.51m (1'8") |
Freeboard |
1.07m (3'6") |
Hull Deadrise |
28 |
Weight (Hull and Engines) |
2700kg (approx) |
Recommended Horsepower |
Twin O/Boards 150 to 200hp |
Performance with Twin 150HP |
Top Speed 76 klms @ 5800 rpm
Cruise Speed 48 klms at 4200 rpm |
Props |
Props 15.25' x 17' Pitch - S/Steel |
|
|
STANDARD ENGINES Twin 150Hp C/R V6 2.6L Yamaha Outboards |
|
Standard Equipment
[View Standard Equipment photo gallery]
HULL & DECK
|
|
|
- S/Steel Grab rails & Boarding ladder
|
|
- Open hardtop fully lined and carpeted
|
- 2 x S/Steel grab rails on hardtop
|
- Plough anchor & chain/rope
|
- Deck mounted fuel fillers
|
|
- Rear stainless steel support rails
|
- Forward overhead grab rails
|
|
|
|
- Front and Side Clear curtains
|
- Moulded acrylic windscreen
|
- S/Steel grab rail (on windscreen)
|
- Full set of camper covers
|
|
- Regulation navigation & running lights
|
|
CABIN
|
|
|
|
- Electric Marine Toilet (large)
|
- Cabin side storage pockets (2)
|
|
|
|
|
COCKPIT
- Instrument console with glove box and switch panel (circuit breaker)
|
- Upholstered helm & Passenger Seats Folding Up For Standing Position
|
- Removable Moulded Table with Padded in-Fill Cushion Folding to Form Double Bed
|
|
- Moulded Rear Lounge Upholstered with Storage Below
|
|
- 2 Cockpit Courtesy Lights
|
- Moulded Centre Console with Grab Rails, Sink, Fridge & Storage Cupboard below
|
OTHER STANDARD EQUIPMENT
- 2 x 200L Under Floor Fuel Tanks
|
|
|
|
- Speedo, Tacho, Hour & Volt Meters
|
|
|
- 4 x 400GPH Bilge Pumps
(2 with Auto Float Switches)
|
- Rocket Launcher, S/Steel 8 Rod
|
- EPIRB with Flush Mount Bracket
|
|
|
|
- Marine Safety & Mooring Pack
|
OPTIONAL EXTRAS
[View Optional Extra photo gallery]
- Single burner gas cooker recessed
|
|
|
|
- Hull antifoul & epoxy seal
|
|
- Swinging bait board with S/Steel supports
|
- Fender holder (2) in bow rail
|
|
|
|
- Live bait tank with auto aerator
|
|
- Underfloor compartment, bilge pump
|
- Forward loading bow ladder
|
|
|
|
- 240v or heat exchange hot water system
|
- VHF marine radio & aerial
|
|
|
 |
Targa SPECIFICATIONS
Specifications may change at any time without notice. Please note that the illustrations displayed may show optional extras not normally supplied with the craft as a standard fitting. |
|
Shipping Length |
9.4m (31') |
Moulded Length Overall |
9.3m (30'6") |
Overall Beam |
2.82m (9'3") |
Draft (Outboards Up) |
0.51m (1'8") |
Freeboard |
1.07m (3'6") |
Hull Deadrise |
28 |
Weight (Hull and Engines) |
2600kg (approx) |
Recommended Horsepower |
Twin O/Boards 150 to 200hp |
Performance with Twin 150HP |
Speed 80 klms @ 5800 rpm |
Props |
Props 15.25' x 17' Pitch - S/Steel |
|
|
STANDARD ENGINES Twin V4 150Hp Yamaha Outboards |
|
Standard Equipment
[View Standard Equipment photo gallery]
HULL & DECK
- Bow eye, bow roller, cross bollard & bow sprit
|
|
- Plough anchor and chain/rope combination
|
- Mooring cleats (4 fixed, 2 pop-up)
|
- Moulded acrylic windscreen with stainless steel grab rail
|
|
- Rear swim platform with grab rails and boarding ladder
|
- Deck mounted fuel fillers
|
|
|
|
- Regulation navigation lights and running lights
|
- Moulded targa arch with fitted bimini canopy folding with cover sock
|
- Rear S/steel support rails to back of targa
|
- 2 x storage tanks in corner deck combings with teflon lids
|
|
|
CABIN
|
- Large double bed with scatter cushions
|
|
|
- Electric marine toilet (large)
|
- Cabin light and 2 reading lights
|
- Cabin side storage pockets (2)
|
|
COCKPIT
- Instrument console with glove box and switch panel (circuit breaker)
|
- Moulded centre console with granicote top & stainless steel grab rails
|
- 12/240 volt 55 litre fridge and extra battery
|
|
|
|
- Cockpit courtesy lights (2)
|
- 1500w single burner metho stove fitted into recess above fridge
|
- Upholstered helm and passenger seats folding up for standing position
|
- Extended size moulded removable rear lounge upholstered with storage under
|
- Removable moulded granicote table with padded in-fill cushion folding to make double bed
|
OTHER STANDARD EQUIPMENT
- 2 x 240 litre fuel tanks under floor deck filled
|
|
- 60 litre effluent holding tank with Y valve & deck fitting for dockside & overboard pump out including macerator pump
|
- 2 bilge pumps (400 GPH) with automatic float switches
|
|
- Marine radio (27MHZ) and aerial
|
- Clarion marine AM/FM stereo and CD player
|
- Dual batteries and switch
|
|
- Speedo, tacho, hour and volt meters and compass
|
- EPIRB with flush mount bracket
|
- Fire extinguisher with flush mount bracket
|
- Marine safety and mooring pack
|
|
|
OPTIONAL EXTRAS
[View Optional Extra photo gallery]
- Front breezeway clears & clear side curtains
|
- Rear camper covers full set with aluminium bows
|
|
- Hull antifoul and epoxy seal
|
- Swinging bait board with stainless steel supports
|
- Foam filling of hull for positive floatation
|
- Rocket launcher, stainless steel 8 rod
|
- Live bait tank with aerator in corner deck coaming (teflon lid)
|
- Underfloor storage compartment with bilge pump
|
- 300 litre fuel tanks x 2 (upgrade)
|
|
- VHF marine radio and aerial
|
- 20 litre heat exchange hot water system (four stroke motors only)
|
- S/S marine BBQ fitted including gas bottle
|
- Fender holder (2) in bow rail
|
- Deck wash kit saltwater/freshwater inc 4m hose
|
- Megapulse battery charger & maintainer (must have shore power)
|
- Shore power kit with earth leakage system and dual power socket in workstation
|
- Forward loading bow ladder
|
- Deckplank marine carpet to cockpit
|
- GPS/ Chartplotter/ Sounder
|
|
